User Instructions

Model	DE-2SW continuous flow rate oxygen
Weight	7.2 kg

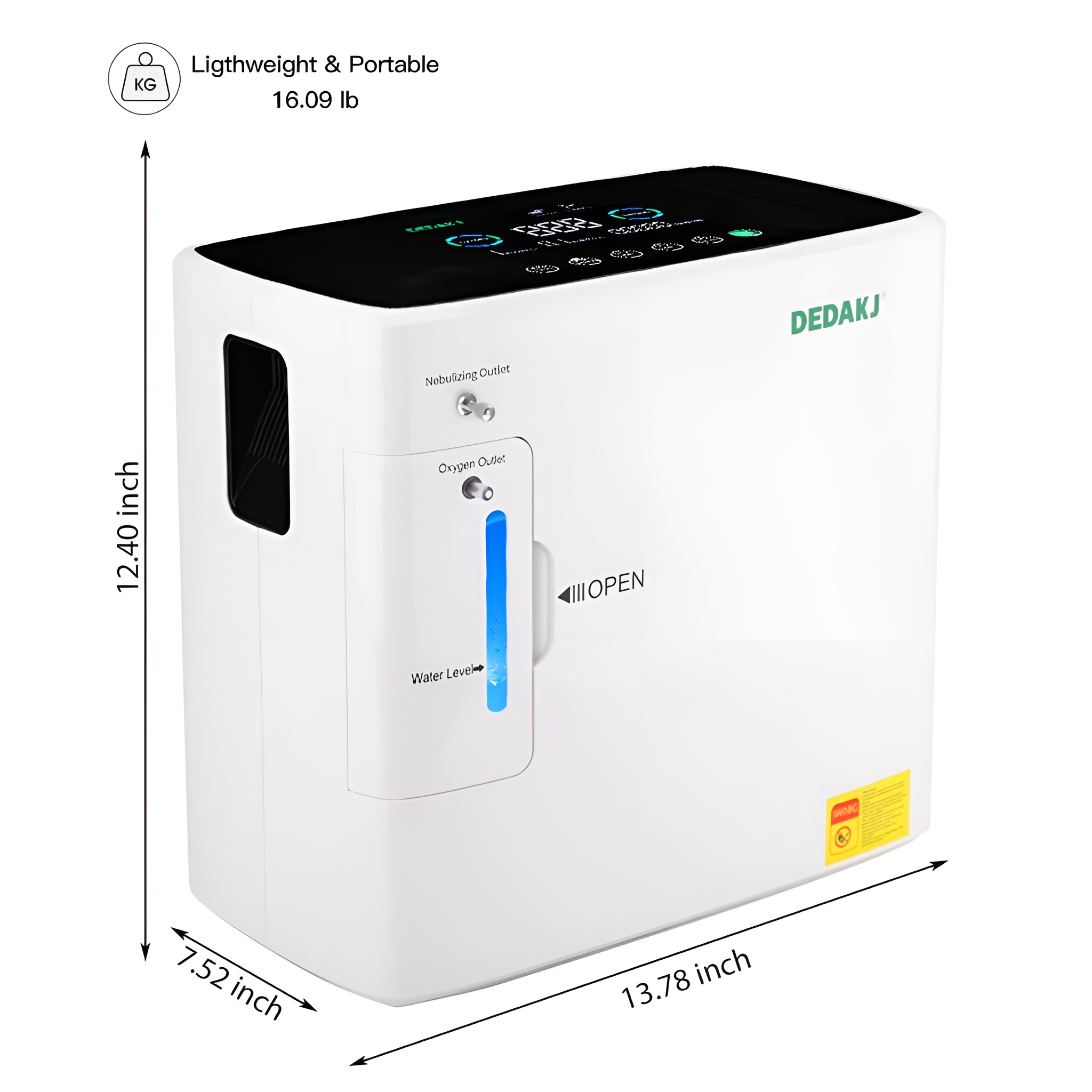

Dimensions	350x191x315mm 13.78×7.48×12.40 inches
Oxygen flow	2-9 liters adjustable
Oxygen concentration	30%-90% adjustable
Noise (dBA)	≤ 45dB
Power	200W
Oxygen Pressure	0.02~0.05Mpa
Technology	oxygen concentrator with PSA technology
Control distance	20 Meter
Oxygen Flow Rate	Continuous Flow
Warranty	One Year

Product Features

One Machine is Equivalent to Five Machines

This product has a powerful multi-functional integration advantage. There is no need to purchase multiple devices, saving space and cost, and the cost performance is far superior to single-function devices. The atomized particles are fine and easy to absorb, the negative oxygen ions are released efficiently, the ultraviolet sterilization leaves no residue, and the humidifier humidifies evenly without water accumulation. The integrated design makes the operation simpler. One device is uniformly controlled, and there is no need to repeatedly turn it on and off. The elderly can also easily use it, providing a one-stop solution for your respiratory health.

Double Suction

It supports two people to breathe oxygen at the same time, without waiting in turns. It is very suitable for family use and is relatively simple to operate. Whether it is an elderly couple accompanying each other to recuperate, or parents and children sharing oxygen therapy time, warm care and health protection can be doubled, which can enhance the convenience and experience of your oxygen inhalation.

Atomization

Choose an oxygen concentrator with atomization function, which is suitable for a wide range of people, can also save hospital queuing time and reduce medical expenses. The effect of atomization combined with oxygen inhalation is more significant and twice the result with half the effort. The all-in-one machine has a higher performance compressor, and the atomized particles are finer and easier to absorb.

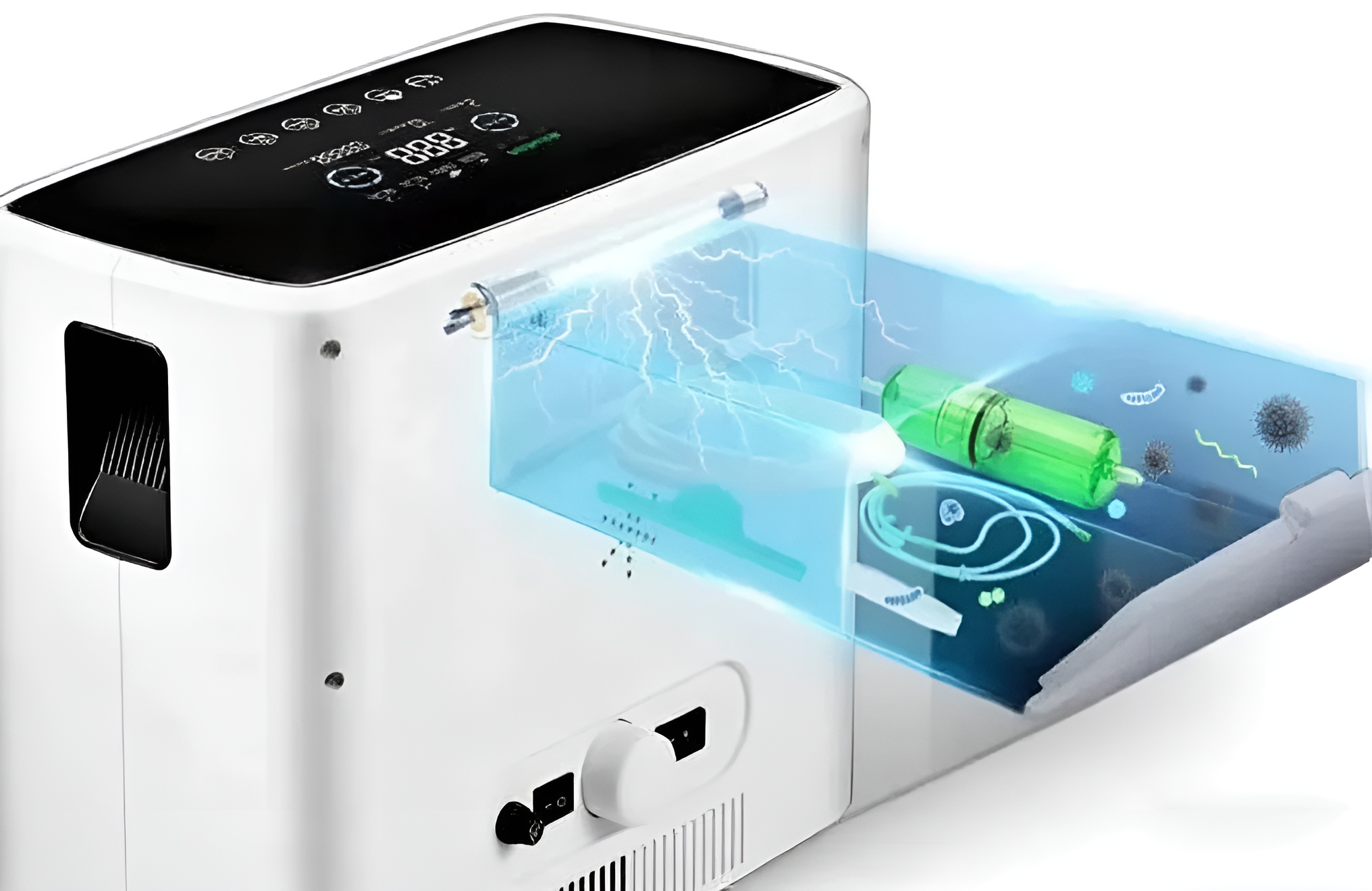

Intelligent Sterilization

After oxygen inhalation is completed, put the oxygen inhalation accessories into the sterilization chamber. Just one-click start, you can use ultraviolet rays to sterilize and disinfect the oxygen inhalation accessories. After one-click start, the sterilization is automatically completed in 25 minutes, which is worry-free and safe.

Negative Ion Function

Negative oxygen ion built-in high-frequency negative oxygen ion emitter, turn on the negative ion switch, purify the air at the same time, increase the negative oxygen ion particles, not only can make the oxygen inhalation more refreshing and clean, but also can properly purify the air around you.

SOS One Click Help Function

Through the remote control, when the user needs help, he can trigger SOS with one click, which quickly transmits a distress signal by imitating a human voice calling for help, so that family members can be informed in time and ensure that they can get support in an emergency.

Sleep Mode Works All Night

This product is especially equipped with a sleep mode, a key to switch the screen automatically adjusted to the dark screen state, effectively reducing the night light interference, so that you can breathe oxygen in a quiet and comfortable environment at ease, to enjoy high quality sleep without light interference.

Pressure Swing Adsorption (PSA) Technology

The device adopts PSA technology, using molecular sieve separation to leave high-purity oxygen, so that oxygen can be output stably. Integrated nano-photocatalytic activated carbon composite filter, three-stage air purification, interception of particulate matter, neutralization of harmful gases, inhibition of bacteria and viruses, dual technical guarantees, even in harsh environments can provide ideal breathing support.

V6 Twin-cylinder Oil-free Compressor

V6 double-cylinder oil-free compressor, pure copper movement, stable performance and long life. It can support the continuous and stable operation of the oxygen concentrator all day long, even if the user needs to inhale oxygen all night long, it can also ensure the continuity and stability of oxygen supply.

Molecular Sieve Technology

In oxygen generators, the key role of advanced molecular sieve technology is to efficiently separate nitrogen and oxygen. By utilizing the shape-selective adsorption characteristics of molecular sieves, oxygen in the air is enriched to produce high-purity oxygen.

Eight stage Filtration System

This eight-stage filtration system can filter out impurities to make the air cleaner. It can reduce infection for people with respiratory diseases. The clean air after filtration enters core components such as molecular sieves, reducing impurity accumulation, extending the service life of molecular sieves, and ensuring oxygen concentration and quality.

Multiple Flow Settings

Compared with other oxygen concentrators, the flow range is narrow. Our oxygen concentrators can be adjusted flexibly from 2 to 9L. Whether it is low-flow oxygen supplementation for mild hypoxia (such as daily fatigue, short-term discomfort in a confined space, 2 to 3L can be relieved), or to cope with more complex hypoxia conditions (such as deep hypoxia recovery after exercise, high-altitude hypoxia environment, etc.), directly adjust 9L strong oxygen supply, one machine can meet the oxygen inhalation scenarios of the whole family. Meet your full oxygen care from daily to special needs. For the price of one machine, you can get full-scenario services from daily mild oxygen supplementation (small flow) to deep, high-demand oxygen supply (9L).

Low Noise

Quiet operation, the operating noise during sleep is only 45 decibels. It is quiet and silent, and bids farewell to the roar of traditional oxygen concentrators. It will not disturb you and your family’s rest, and is also suitable for oxygen inhalation during rest.

24-hour Continuous Oxygen Supply

Continuous oxygen supply without stopping, supporting 24-hour continuous operation, meeting long-term oxygen inhalation needs, no need for frequent start and stop, stable oxygen output. Strong durability, 3000 hours of continuous work without trouble, reliable quality, reducing maintenance concerns, long-term use is more worry-free.

Remote Control

Equipped with a 20-meter wireless infrared remote control, the elderly do not need to get up frequently and can easily adjust the control from anywhere in the room. The operation is simple and fast.

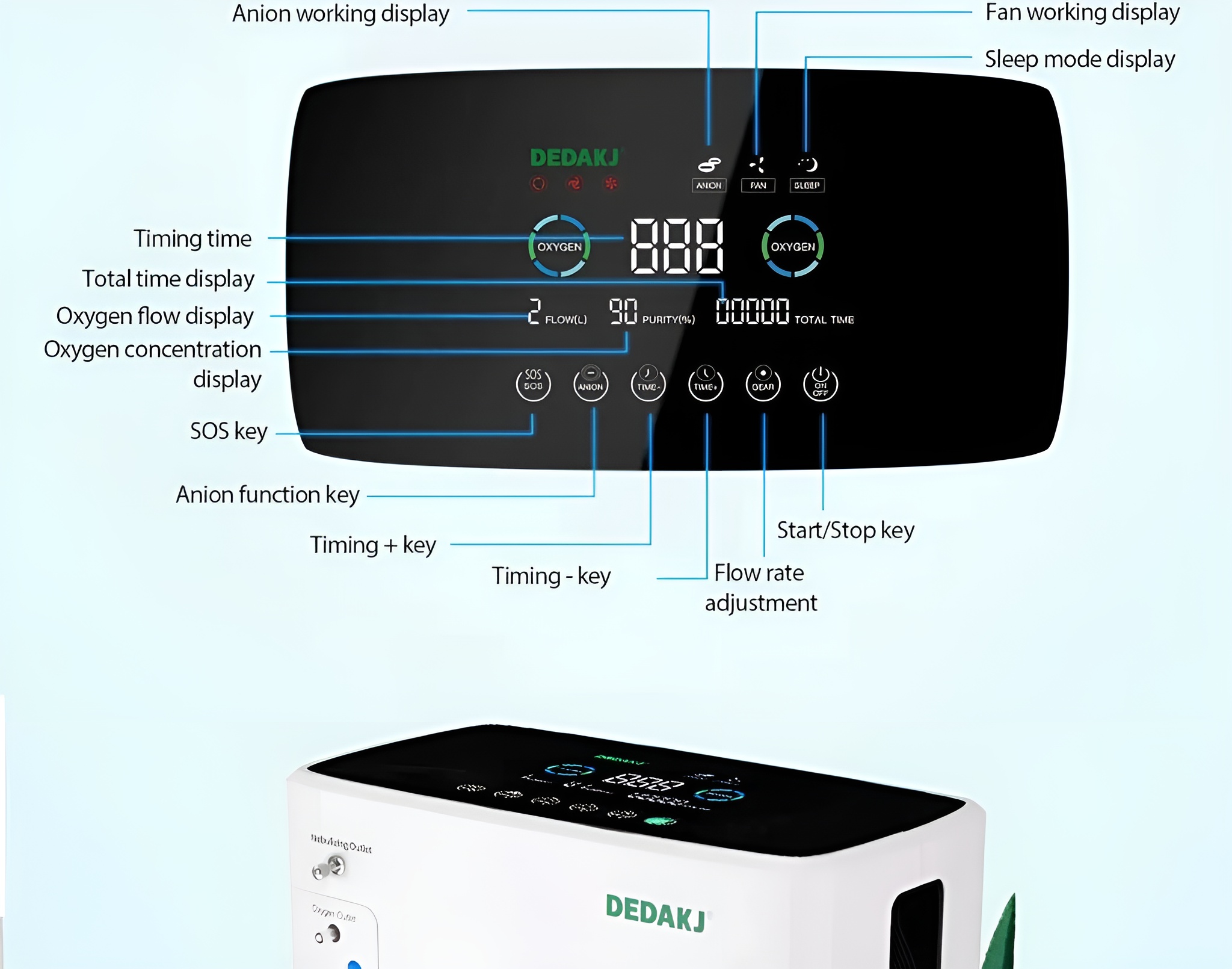

High-definition LED Display

The touch is sensitive, the function buttons are clear, and the screen displays the timing time, cumulative running time, oxygen flow, oxygen concentration and other data in real time, as well as negative ion, sleep mode and other status. You don’t need to check the instructions repeatedly, you can intuitively understand the working status of the machine and use it with more peace of mind.

Removable and Washable Humidification Tank

The removable and washable humidification tank brings fresh, clean and comfortable oxygen. Through humidification, the output oxygen has a certain degree of humidity to avoid dry oxygen irritating the respiratory tract. Long-term oxygen intake also keeps the throat and nasal passages comfortable and improves the oxygen intake experience.

Hypoxia Response Programs for Different Populations

1. Patients with cardiovascular and cerebrovascular diseases
Patients with cardiovascular and cerebrovascular diseases often face the risk of dizziness, headache, chest tightness, palpitations and even sudden emergencies due to poor blood circulation and insufficient blood oxygen supply! Long-term chronic hypoxia will increase the burden on blood vessels and induce serious consequences such as cerebral infarction and myocardial infarction. Our oxygen concentrator protects life and health with professional oxygen therapy! 2-9L/min wide range flow adjustment, which can be flexibly adjusted according to the condition: daily health care with low flow gentle oxygen supplement to improve blood circulation; in case of sudden discomfort, 9L large flow rapid oxygen supply, relieve myocardial ischemia, cerebral insufficiency caused by hypoxia symptoms, and buy precious time for rescue. ≥93% stable oxygen concentration, continuously inject vitality into the heart and brain organs, reduce vascular pressure, and reduce the risk of disease.

2. Mild hypoxia (hypoxia) state or discontinuity
Some patients are in a mild hypoxia (hypoxia) state or discontinuity. Increased activity, excessive mental tension, overeating, and supine sleep at night often induce or aggravate hypoxia. Our products are suitable for people who have mild hypoxia symptoms, such as occasional dizziness, shortness of breath, lack of concentration, etc., and the hypoxia state is not continuous. Whether it is a short-term discomfort caused by environmental changes or mild hypoxia caused by daily fatigue, this oxygen concentrator can replenish oxygen in time and quickly restore vitality.

3. Some patients in the recovery period of acute diseases
For example, acute myocardial infarction, acute cerebral infarction, severe myocarditis, severe pneumonia, or after cardiothoracic surgery, the body is in a fragile recovery period, and it is easy to slow down the pace of recovery due to mild hypoxia and hypoxemia. Our products have an adjustable flow of 2-9 liters, which fits different scenarios: daily lying and recuperating, low-flow continuous oxygen supply, slowly improving the body’s hypoxic microenvironment; when doing a little activity, increase the flow as needed to meet the additional oxygen demand in the state of exercise. 93% high-concentration oxygen quickly increases blood oxygen saturation, “delivers energy” to damaged myocardium and brain tissue, promotes cardiopulmonary function repair, helps brain function recovery, and accelerates the body’s recovery process. Flexible flow adjustment, which can be adjusted dynamically according to the condition: when the hypoxia is mild during the recovery period, use low flow to maintain basic oxygen supply; if there is a short-term hypoxia fluctuation, increase the flow to quickly relieve it.

4. Anemia people
Due to the weak oxygen carrying capacity of the blood, anemia people are prone to hypoxia symptoms such as dizziness, fatigue, and shortness of breath. Long-term hypoxia can damage cardiopulmonary function and affect life. The capacity of this product can be adjusted between 1 liter and 9 liters. It can directly supplement high-concentration oxygen according to your symptoms, bypass the oxygen-carrying barrier caused by anemia, allow oxygen to reach cells directly, quickly relieve hypoxia discomfort, and replenish energy for the body.

5. Acute heart failure patients
When acute heart failure occurs, every breath is a race against time! Rapid panting, chest tightness and suffocation, and a sudden drop in blood oxygen, every second of hypoxia may increase the burden on the heart and endanger life! This product is designed for emergency and long-term oxygen therapy needs! The 2-9L ultra-large flow rate is precisely adjustable, and can quickly output high-flow oxygen (up to 9L/min) during acute attacks, quickly increase blood oxygen concentration, and relieve dyspnea; stable oxygen concentration reduces the pressure on the fragile cardiopulmonary system, and buys golden time for rescue and rehabilitation. Supports continuous and uninterrupted oxygen supply throughout the day to meet the all-weather oxygen therapy needs of patients with acute heart failure.

6. Acute attacks of bronchial asthma or epilepsy
When bronchial asthma attacks suddenly, accompanied by severe wheezing and dyspnea, or acute attacks of epilepsy are accompanied by respiratory depression, oxygen therapy support against time is the key to protecting life. This product can quickly increase the flow rate during an asthma attack, quickly relieve the symptoms of hypoxia caused by airway spasm; when acute attacks of epilepsy cause abnormal breathing, it can also provide sufficient oxygen in time to stabilize blood oxygen levels. Stable oxygen concentration protects the fragile respiratory system and reduces the risk of complications caused by hypoxia.

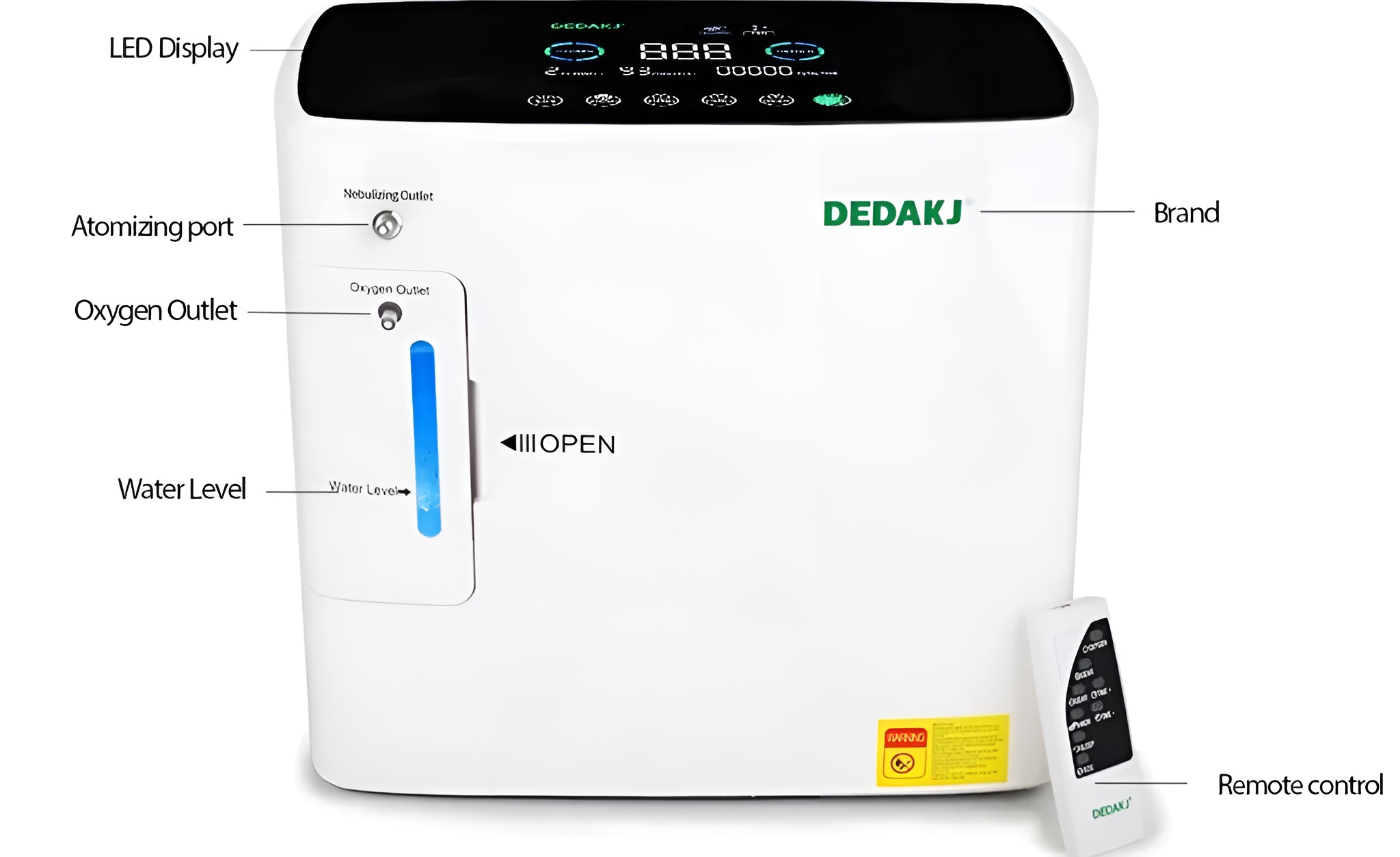

Product Details

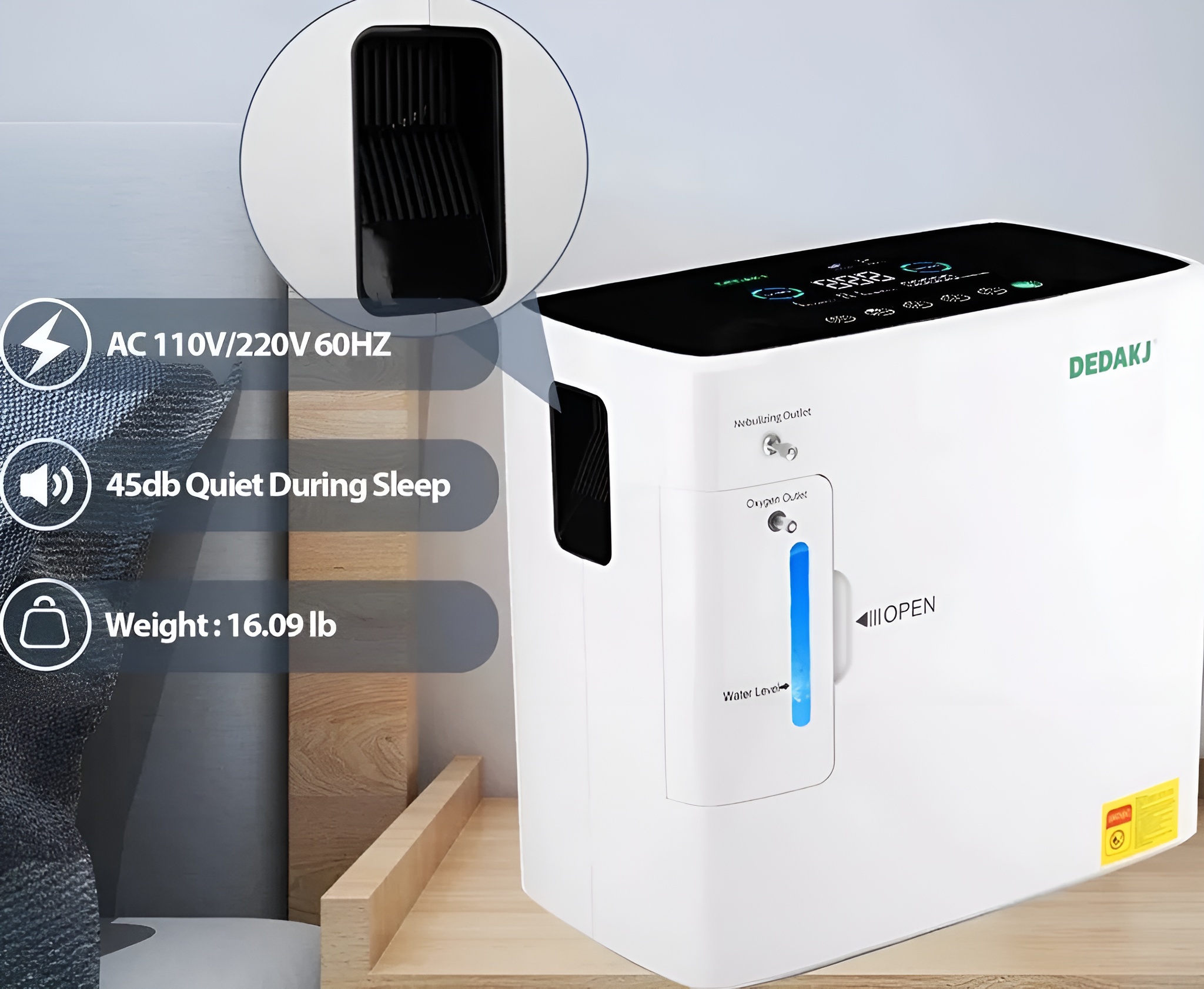

Our oxygen concentrator features an ergonomically designed notched handle for easy mobility and portability for seniors.

Our visual humidification water tank allows you to intuitively see the water level in the humidifier, making it easy to replenish water in a timely manner to ensure continuous and effective humidification. Simply add water up to the maximum water level line, and it is recommended that the water be replaced every time it is used.

The heat dissipation window can discharge the heat generated by the equipment, introduce cold air, form air circulation, and ensure the long-term stable operation of the oxygen concentrator. At the same time, some of them can also assist in noise reduction and block large particles of debris.

From left to right, there are fuse, power switch, air filter, and power interface. Rotate the air filter to start, which is simple and labor-saving to operate, ensuring that the oxygen concentrator continuously outputs clean oxygen. Plug and play, stable and long-lasting power supply can meet the demand for long-term continuous oxygen supply.

Speaker, voice prompt and fault alarm, when the equipment has abnormality (such as low oxygen concentration, water shortage, fault), it will issue a reminder so that the user can deal with it in time.

Who can use it?

Office workers

Staring at the computer screen for hours, feeling dizzy and distracted while working, and the low oxygen environment in the air-conditioned office will deplete your working state. This product can quickly produce oxygen in 1 minute, and provide 15 minutes of oxygen therapy during lunch break, which can quickly increase blood oxygen saturation, dispel brain fog, and allow you to work efficiently.

Pregnant women

Fetal compression leads to breathing difficulties in late pregnancy, pregnancy-induced hypertension and hypoxia. Our oxygen concentrator can not only improve symptoms of dizziness and fatigue, but also promote placental blood circulation. Studies have shown that pregnant women who receive scientific oxygen supplementation have a lower probability of abnormal fetal heart rate.

Elderly people

The cardiopulmonary function of the elderly over 60 years old is declining year by year, especially those with high blood pressure. Inhaling oxygen for one hour a day can increase blood oxygen by 3-5 percentage points and prevent complications such as cerebral infarction and angina pectoris. Our models with atomization function can also be used as first aid equipment during asthma attacks.

Plateau travelers and plateau residents

The plateau environment consumes a huge amount of oxygen. Our plug-in oxygen concentrator does not require batteries and can be used by plugging in. It is free from the constraints of batteries and can maintain a stable oxygen concentration even in severe cold environments, which can prevent altitude sickness.

Workers in polluted areas

Long-term exposure to mining dust and chemical waste gas will cause the average daily inhalation of PM2.5 and harmful chemical particles in the lungs to far exceed safety standards. Using this oxygen concentrator for 30 minutes of oxygen therapy can increase blood oxygen saturation by 15%-20%, accelerate the metabolic efficiency of harmful substances remaining in the lungs by more than 40%, and significantly relieve hypoxic headaches caused by a closed environment, helping you quickly restore your respiratory health.

Athlete

After high-intensity training, muscles become sore. Using this product can quickly increase blood oxygen saturation within 10 minutes, accelerate lactic acid metabolism, and help muscles recover. Use it before a game to activate cardiopulmonary function, maintain the best competitive state during the game, and shorten the fatigue recovery cycle after the game, so that every breakthrough in the limit will be helped by oxygen.

Application Scenario

Packing Accessories

Working Principle

Air enters the compressor after filtered by the air inlet filter and is compressed into molecular sieve tower for separation of oxygen gas and nitrogen gas. Then, oxygen gas passes through the molecular sieve tower and enters the fine sieve tower smoothly, while nitrogen gas is discharged into the atmosphere through the separating valve after adsorbed by the molecular sieve. After the concentration of oxygen gas is further increased in the fine sieve tower, the flow rate is controlled by the flow control valve, and then oxygen gas is wet through the humidification water tank and finally flows through the oxygen delivery pipe for supplementary oxygen inhalation by users.

Usage steps

Drain the water tank
Fill with water
Connect the power cord
Connect the oxygen inhalation tube
Wear the oxygen inhaler
Start the oxygen concentrator

FAQ

How to Clean and Maintain

Clean the shell

Clean the shell surface at least once a month. First, turn off the power supply, wipe it with a slightly damp clean soft cloth dipped in disinfectant, and prevent liquid from seeping into the machine bottle.

Clean the water tank

Keep the water tank clean. Fill the water tank with pure water, distilled water or cold boiled water, and try to change it every day.

Clean the water tank once a week. First shake it with a detergent and then rinse it with clean water to ensure hygiene when using oxygen.

Clean or replace the filter and filter cotton

The “white air filter” behind the frame has the function of reducing noise, isolating dust, and purifying the air. Cleaning and replacing the filter is essential to protect the compressor and molecular sieve and extend the service life of the oxygen generator. Please clean or replace it in time.

Do not operate the oxygen generator when the filter or filter cotton is not installed or the filter or filter cotton is wet, otherwise it will damage the machine in the long run.

Filter: Generally clean or replace it every 100 hours.

Disassembly
It is located on the back of the machine. Pull out the air inlet cover to directly remove the filter. The actual cleaning or replacement time of the filter and filter cotton needs to be determined according to the actual use time and environmental influence. If the filter is dirty or blocked, it should be cleaned or replaced immediately regardless of how long it has been used.

Note: As a consumable, it is recommended to replace it regularly.

Cleaning
Wash it with a mild detergent, then rinse it with clean water, and install it on the machine after it is fully dried.

Cleaning the oxygen inhaler and atomizer assembly

It should be cleaned once after each use. The nasal inhaler on the nasal oxygen inhaler should be cleaned and disinfected after each use: soak it in 5% potassium permanganate solution for 5 minutes, then wash it with clean water or wipe it with alcohol. The oxygen inhalation tube and atomizer assembly are consumables and it is recommended to replace them regularly.

Replace the fuse

After confirming that the power cord plug is unplugged from the power socket, pry open the fuse cover with a flat-blade screwdriver (as shown in the appearance diagram), remove the failed glass fuse tube, install a new glass fuse tube, and put the fuse cover back into the socket.

Long-term Idle Treatment

Please do the following work before the oxygen concentrator is idle for a long time.

1. Remove the humidification water tank, pour out the water in the water tank, air dry, and install it back in place.

2. Cut off the power supply and retract the power cord.

3. Do not store the oxygen concentrator in a humid or dusty environment. Avoid direct sunlight and pollution. Store the oxygen tube and oxygen absorber in a dry place at room temperature. Do not bend the airway tube, and please place this product out of reach of infants and young children. Before using the oxygen concentrator that has been idle for a long time again, please do the following preparations.

(1) Check whether the power cord is damaged.

(2) Clean the oxygen tube and oxygen absorber to check whether there is any blockage or bending.

(3) Clean the humidification water tank.

Safety Precautions

Warning

This device is not a medical device and is therefore not suitable for life support or life extension!

▲The machine should be placed in a well-ventilated place indoors, avoid direct sunlight, and the distance from objects such as walls should be greater than 30CM/12In.

▲Do not place any foreign objects or liquid containers on the chassis.

▲It is strictly forbidden to pile up debris at the side air inlet and rear air vents of the machine to prevent the inlet and exhaust ports from being blocked, causing the machine temperature to be too high, causing shutdown or a decrease in oxygen concentration.

▲To avoid interference from strong electromagnetic environments or other electrical appliances, keep the machine at least 3m/120In away from other household appliances

▲It is forbidden to invert or place the machine horizontally.

▲If the power supply voltage is unstable and exceeds the normal voltage range of 15V, please connect the voltage regulator before use.

▲Please choose safe and qualified sockets and terminal blocks certified by the China Electrical Product Certification Committee (CCEE)

▲Oxygen is a combustion-supporting gas. Smoking is prohibited and stay away from fire sources to avoid fire.

▲Do not start or stop the machine frequently. Please wait for 3 to 5 minutes before starting the machine after stopping to avoid affecting the service life of the compressor.

▲Do not apply oil or grease to any part of the oxygen concentrator.

▲Do not use the oxygen concentrator without an air filter.

▲When using the oxygen concentrator, avoid bending the oxygen tube, otherwise the water tank will overflow.

▲Unauthorized personnel are not allowed to remove the cover.

Certified

CE certification is a mandatory conformity mark in the European Union that indicates products comply with EU safety, health, and environmental standards, thereby allowing this product to enter the market.

Our product holds ISO certification, a globally recognized standard confirming compliance with rigorous international quality and safety protocols, ensuring reliable performance and customer confidence in global markets.
